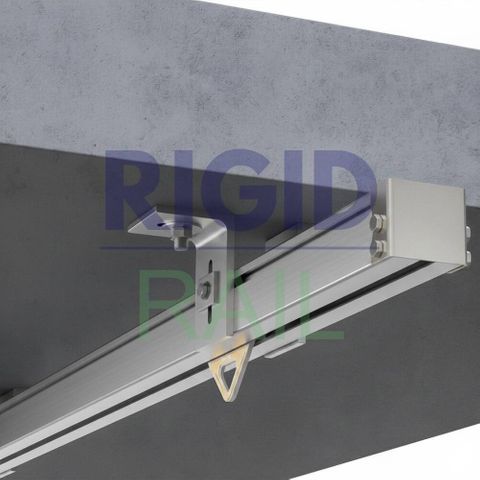

Rigid Rail 80 Glass Lifting
Description
The RR804 Rigid 80 Rail System is a proprietary low-profile rigid rail system designed to provide efficient fall arrest and rope access solutions for multiple users undertaking maintenance on facades, roofs, and plant equipment.
System Overview
- Suitable for both fall arrest and rope access applications.
- Rated to:
- 21kN for fall arrest applications
- 18kN for rope access applications
- Adjustable concrete mounting configuration.
- Supports up to 600kg point load per trolley.
- Increased point load capacity suitable for applications such as glass replacement.
- Curving capability down to a 1000mm radius.
- Ideal where a compact, low-visibility solution is required.
- Simple installation utilising a T-bolt mounting system fixed to the outer cavity wall.
- Allows attachment of suspended ceiling systems to the side of the track where required.
- Rail weight: 5.9kg per linear metre.
